BR Sales being one of the leading service providers in industry we are engaged in providing high quality Industrial Project Consultancy services. Our experts interact with the clients and analyze their needs and offer services accordingly. We are offering Consultancy for Electronic Products and Ceramic Lined Equipment’s.
| Supply | 230V AC ± 20%, 50Hz |
| Output | 2 C/O Relay (5A@230V AC) |
| Control Action | Selectable Delay On/Off |
| Time Range | 0-99.9 hr./min./sec. |
| Display | 0.4" Seven Segment LED |
| Reset | Power On Reset |
| Accuracy | ± 0.01% of FSD |
| Dimension | |
| Size(mm) | 48x48 |
| Cutout(mm) | 44x44 |
| Depth(mm) | 85 |
| Weight(Gms) Approx. | 150 |
| Operating Temperature | 0oC to 50oC |
| Supply | 230V AC ± 20%,50Hz |
| Output | 2 C/O Relay (5A@230V AC) |
| Control Action | Cyclic |
| Time Range | 0-99.9 hr./min./sec. |
| Display | 0.4" Seven Segment LED |
| Reset | Power On Reset |
| Accuracy | ± 0.01% of FSD |
| Dimension | |
| Size(mm) | 48x48 |
| Cutout(mm) | 44x44 |
| Depth(mm) | 85 |
| Weight(Gms) Approx. | 150 |
| Operating Temperature | 0oC to 50oC |
| Supply | 230V AC ±20%, 50 Hz |
| Output | 2 C/O Relay (5A@230V AC) |
| Control Action | Delay On/Delay Off |
| Time Range | 0-99.9/ 999 min/sec. |
| Display | 0.56" Seven Segment LED |
| Reset | Power On & Manual Reset |
| Accuracy | ±0.01% of FSD |

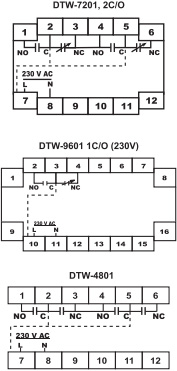

| Dimension | DTW-4801 DTW-7201 DTW-9601 |
| Size(mm) | 48x96 72X72 96x96 |
| Cutout(mm) | 44x94 68x68 92x92 |
| Depth(mm) | 120 110 95 |
| Weight(Gms) Approx. | 530 625 675 |
| Operating Temperature | 0oC to 50oC |
| Supply | 230V AC ± 20%, 50 Hz |
| Output | 2no. 1 C/O Relay (5A@230V AC) |
| Control Action | Forward Reverse with Pause |
| Time Range | Forward : 0-999.9 sec/min. Reverse : 0-999.9 sec/min Hold :0-999.9 sec/min. Cycle Time : 0-9999 sec/min. |
| Display | 0.56" Seven Segment LED |
| Reset | Manual Reset |
| Accuracy | ± 0.01% of FSD |
| Dimension | DLT-7201 DLT-9601 |
| Size(mm) | 72x72 96x96 |
| Cutout(mm) | 68x68 92x92 |
| Depth(mm) | 110 95 |
| Weight(Gms) Approx. | 610 675 |
| Operating Temperature | 0oC to 50oC |
| Supply | 230V AC ± 20%, 50 Hz |
| Output | 1 C/O Relay (5A@230V AC) |
| Control Action | Delayed On with Input Pulse |
| Time Range | 5 to 40 min. |
| Display | - |
| Reset | Power On Reset |
| Accuracy | ± 0.01% of FSD |
| Dimension | |
| Size(mm) | |
| Cutout(mm) | |
| Depth(mm) | |
| Weight(Gms) Approx. | |
| Operating Temperature | 0oC to 50oC |
| Supply | 230V AC + 20%, 50 Hz |
| Output | 2 C/O Relay (5A@230V AC) |
| Control Action | Delay On/Delay Off (Selectable) |
| Time Range | 0-999 min/sec |
| Display | 0.56" Seven Segment LED |
| Reset | Power On & Manual Reset |
| Accuracy | +0.01% of FSD |
| Dimension | DLT-7201 DLT-9601 |
| Size(mm) | 72x72 96x96 |
| Cutout(mm) | 68x68 92x92 |
| Depth(mm) | 59 65 |
| Weight(Gms) Approx. | 198 275 |
| Operating Temperature | 0oC to 50oC |
